KABA-GILGEN pry-open protection floor guide right side 76 mm

Only selling B2B

Please use our contact form for shop registration.
Please include your business registration
which you can attach to our contact form as a PDF file.

Category: SKU: 10098

Description

Reproduction for:



KABA-GILGEN pry-open protection floor guide right side 76 mm               Art.-Nr.: 10098

PA-slide for KABA-GILGEN pry-open protection floor guide                        Art.-Nr.: 10098-1



In case of a PA-slide (Art. No.: 10098-1) we offer bulk prices. Prices up-date in the shopping cart for the respective batches of:
as of 10 Pieces = 2,90 €/Pc.
as of 50 Pieces = 2,80 €/Pc.
as of 100 Pieces = 2,00 €/Pc.
as of 500 Pieces = 1,79 €/Pc.
as of 1000 Pieces = 1,49 €/Pc.
as of 5000 Pieces = 1,29 €/Pc.
as of 10000 Pieces = 1,19 €/Pc.

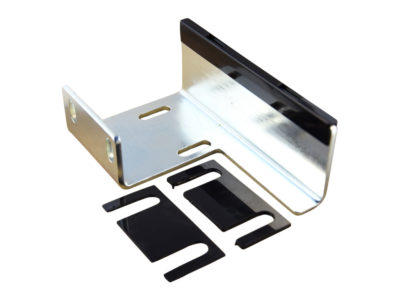

In case of this version (Art. No.: 10098) is supplied as shown in the picture, the reproduction for the KABA-GILGEN pry-open protection floor guide right side76mm with spacer plates of 1 mm and 2 mm thickness.



In case of this version (Art. No.: 10098-1) is supplied as shown in the picture, only PA-slide for KABA-GILGEN pry-open protection floor guide right side 76mm.

If the centre distance from wall to centre of the moveable leaf groove is 76mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the pin centre of the floor guide does also amount to 76mm.



The floor guide shows the following geometries:

Width:              77,5 mm
Height:             49 mm
Length:            120 mm

2 x Ø 3,7 mm Bore hole
4 x 6,5 mm Slot hole



The PA-slide shows the following geometries:

Width:            6,5 mm
Height:              13 mm
Length:           119 mm

4 x Ø 3,5 mm Lock in place clips







Additional information

Weight N/A
Variants

KABA-GILGEN pry-open protection floor guide right side 76 mm (Art.-Nr.: 10098), PA-slide for KABA-GILGEN pry-open protection floor guide (Art.-Nr.: 10098-1)
