Description
Reproduction for:

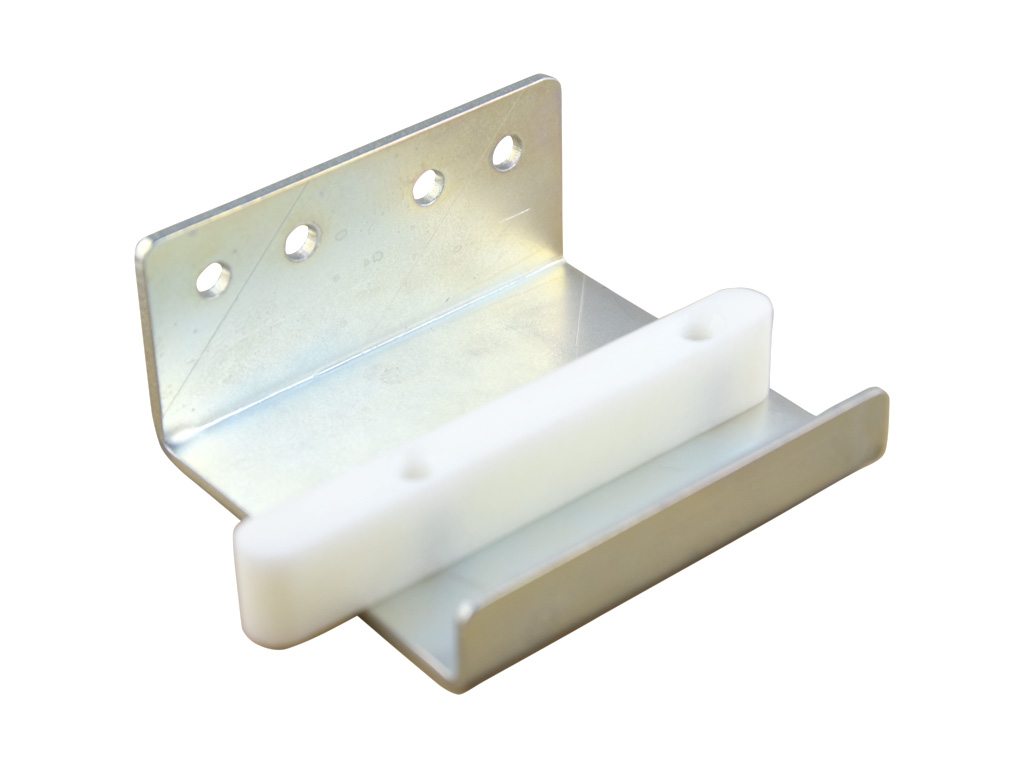

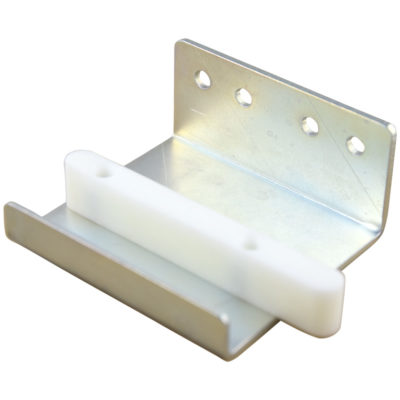

TORMAX Floor guides u-shape 45mm right side Art. No.: 10096

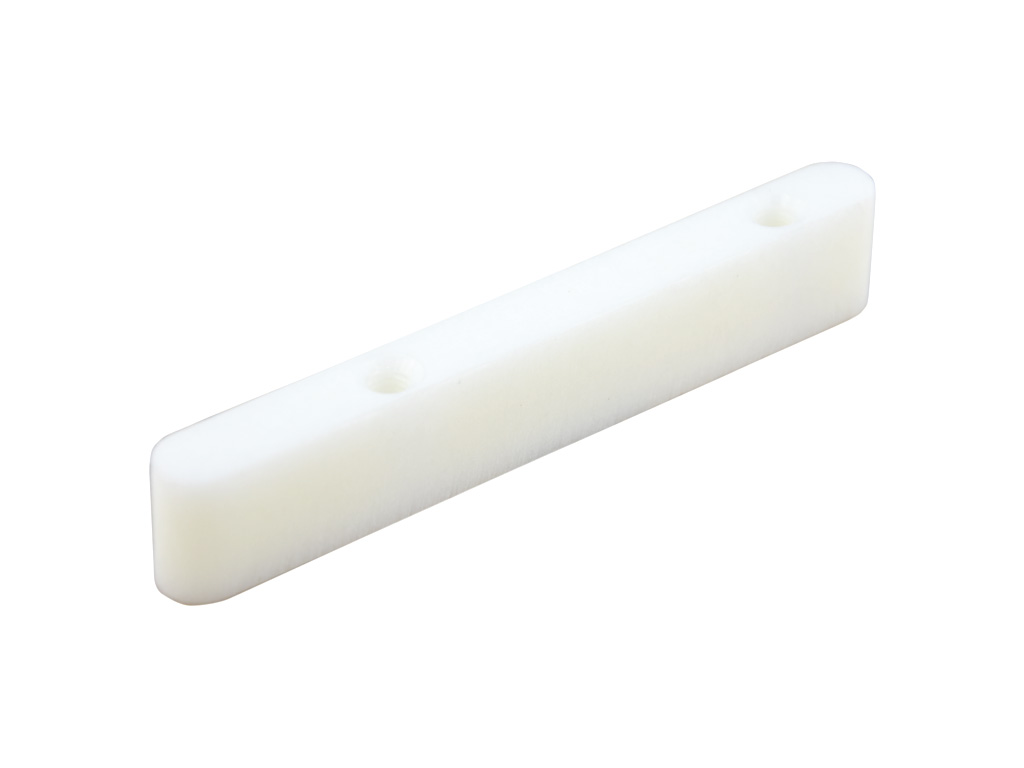

PA-slide for TORMAX Art. No.: 10096-1
In case of this version (Art. No.: 10096-1) is supplied as shown in the picture, only pulley the PA-slide for TORMAX Floor guides u-shape
If the centre distance from wall to centre of the moveable leaf groove is 45 mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the pin centre of the floor guide does also amount to 45 mm.

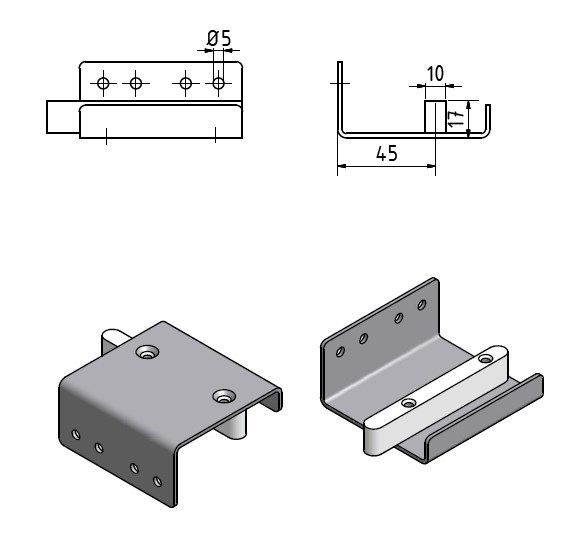

The floor guide shows the following geometries:
Width: 70,5 mm
Height: 35/15 mm
Length: 75 mm
4 x Ø 5,0 mm Bore hole

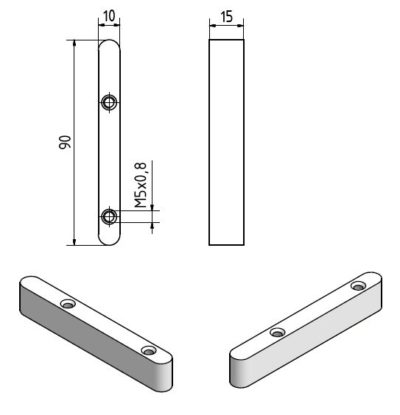

The PA-slid shows the following geometries:
Width: 9,6 mm
Height: 15 mm
Length: 90 mm
2 x M5 Threaded hole countersunk
