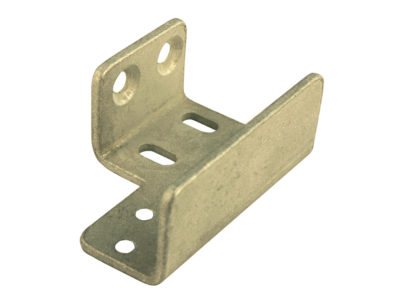

Tormax floor guide right side 48,5 mm Art. No.: 10034
If the centre distance from wall to centre of the moveable leaf groove is 48,5mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the centre of the bearing surface of the floor guide does also amount to 48,5mm.

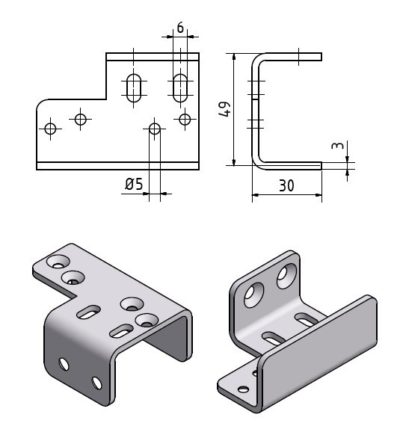

The floor guide shows the following geometries:
Width: 70 mm
Height: 30 mm
Length: 50 mm
4 x Ø 4,6mm bore hole countersunk
2 x Ø 6mm bore hole countersunk
2 x 5,5 mm slot hole
