KABA-GILGEN SLX floor guide right side 32 mm Art. No.: 10077
PA-slide for KABA-GILGEN SLX Art. No.: 10077-1 floor guide 32 mm
In case of a PA slide (Art. No.: 10077-1) we offer bulk prices. Prices up-date in the shopping cart for the respective batches of:
– 10 pieces
– 50 pieces
– 100 pieces

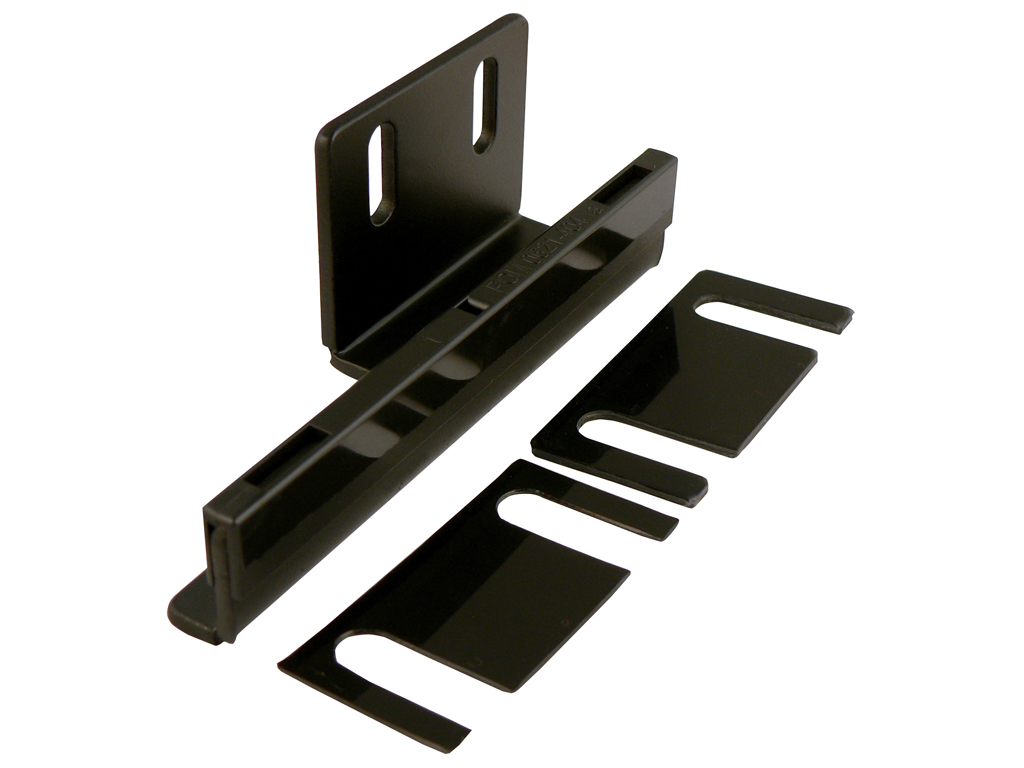

In case of this version (Art. No.: 10077) is supplied as shown in the picture, the reproduction for the KABA-GILGEN SLX floor guide right side 32 mm with spacer plates of 1 mm and 2 mm thickness.
In case of this version (Art. No.:10077-1) is supplied as shown in the picture, only the PA slide for theKABA-GILGEN SLX floor guide right side 32 mm.
If the centre distance from wall to centre of the moveable leaf groove is 32mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the pin centre of the floor guide does also amount to 32mm.
The floor guide shows the following geometries:
Width: 33,5 mm
Height: 45 mm
Length: 120 mm
2 x Ø 5,7 mm bore hole
2 x 6,5 mm slot hole
The pa-slide shows the following geometries:
Width: 6,5 mm
Height: 14 mm
Length: 119,5 mm
4 x Ø 5,5 mm Lock in place clips
