KABA-GILGEN Fixed point guide left side 28 mm

KABA-GILGEN Fixed point guide left side 28 mm

Only selling B2B


Starting from a merchandise value of 200.00€ w/out 19% VAT (238.00€ with 19% VAT) free of shipping costs within Germany
Shipping terms

Please use our contact form for shop registration.
Please include your business registration
which you can attach to our contact form as a PDF file.

Category: SKU: 10099

Description

Reproduction for:

KABA-GILGEN Fixed point guide                         Art.-No.: 10099
left side 28mm

PA-slide for KABA-GILGEN Fixed point guide     Art. No.:10099-1
left side 28mm

In case of a PA-slide (Art. No.: 10100-1) we offer bulk prices. Prices up-date in the shopping cart for the respective batches of:
as of 10 Pieces = 2,90 €/Pc.
as of 50 Pieces = 2,80 €/Pc.
as of 100 Pieces = 2,00 €/Pc.
as of 500 Pieces = 1,79 €/Pc.
as of 1000 Pieces = 1,49 €/Pc.
as of 5000 Pieces = 1,29 €/Pc.
as of 10000 Pieces = 1,19 €/Pc.

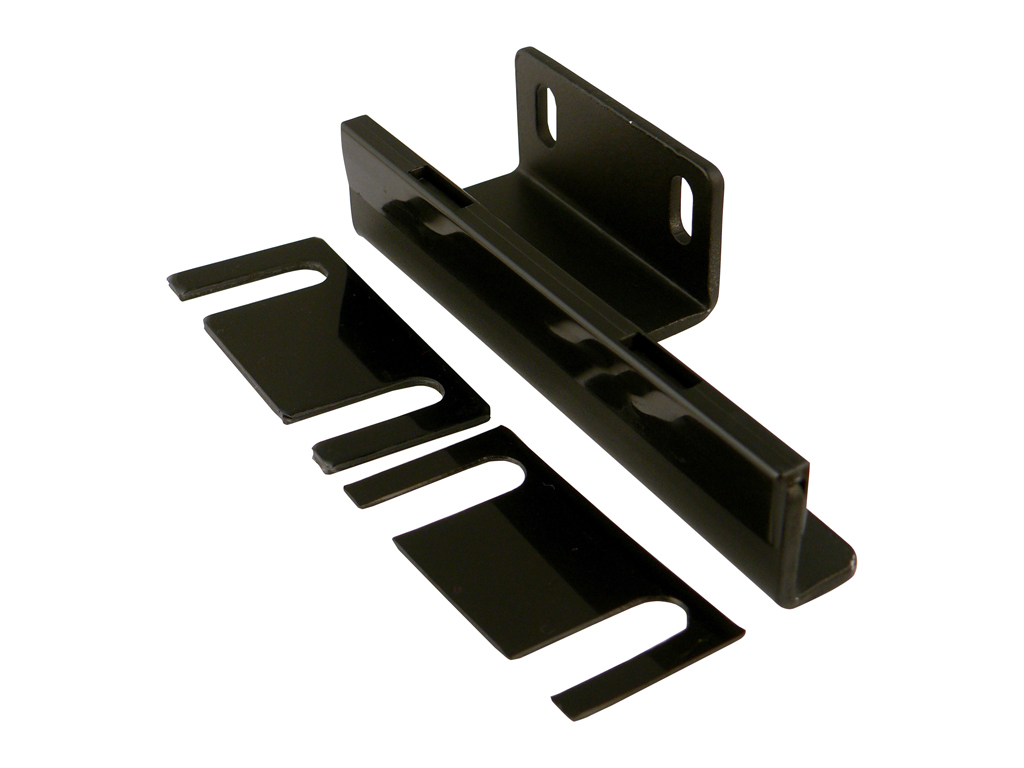

In case of this version (Art. No.:10099) is supplied as shown in the picture, the reproduction for the KABA-GILGEN Fixed point guide left side 28mm with spacer plates of 1 mm and 2 mm thickness.

In case of this version (Art. No.:10099-1) is supplied as shown in the picture, only PA-slide for KABA-GILGEN Fixed point guide left side 28mm.

If the centre distance from wall to centre of the moveable leaf groove is 28mm, this is the matching floor guide. Because the centre distance of the outer surface from the fastening side up to the pin centre of the floor guide does also amount to 28mm.

The floor guide shows the following geometries:

Width:                 29,5 mm
Height:                29 mm
Length:               120mm

2×4,0mm Bore hole
2×6,5mm Slot hole
2×6,5mm Bore hole countersunk

The PA-slide shows the following geometries:

Width:                6,5 mm
Height:               13 mm
Length:              119 mm

4 x Ø 3,5 mm Lock in place clips

Additional information

Weight N/A
Variants
