Description
Reproduction for:

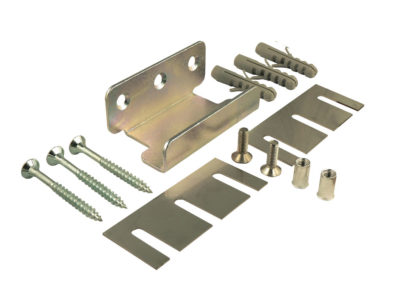

DORMA guide angle set u-shape 34 mm Art. No.: 10089
If the centre distance from wall to centre of the moveable leaf groove is 34mm, this is the matching guide angle. Because the centre distance of the outer surface from the fastening side up to the guidance face of the guide angle does also amount to 34mm.
The floor guide shows the following geometries:
Width: 35 mm
Height: 30 mm
Length: 70 mm
3 x Ø 5,5 mm bore hole sunken
1 x fastening material
